I have damage to the mainshaft of my Lofrans Electric Windlass. I have removed the gypsy and inner clutch cons as well as the rope drum and access plate on the port-side. I thought that the shaft would then simply slide out but the main-gear has a convex gear that fits snugly over the worm-drive and this prevents extraction. I think that I have to pull the worm-drive out but it is pressed into place and I can see no method of attaching a puller to it.

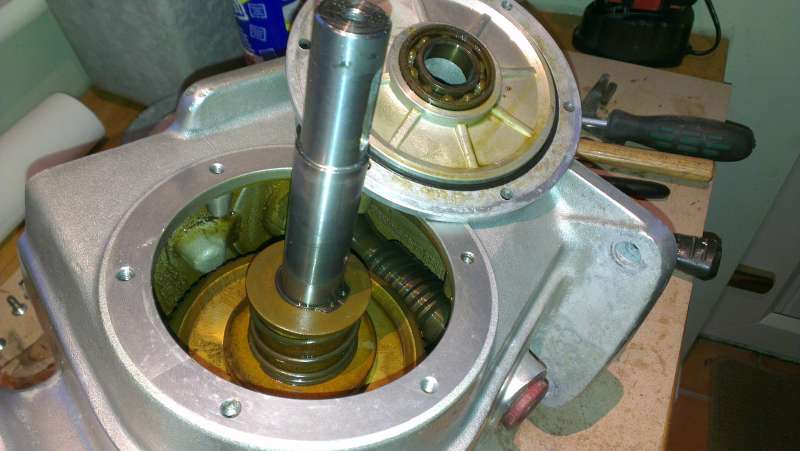

[attachment=68]IMAG0046.jpg[/attachment]

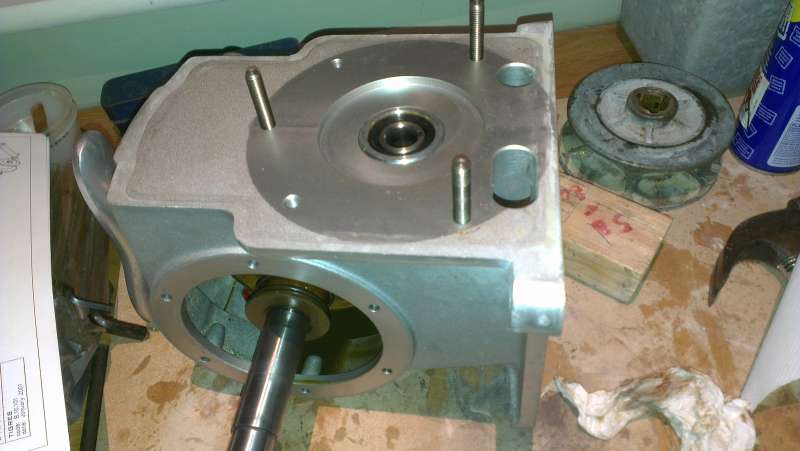

[attachment=69]IMAG0048.jpg[/attachment]
